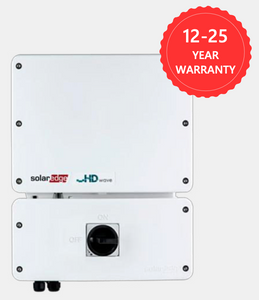

SolarEdge - SE-EH-9600H, Single Phase Energy Hub, 9.6kW, 10kW battery access

SKU: SE-EH-9600H

Optimized battery storage with HD-Wave technology

Record-breaking 99% weighted efficiency with 200% DC oversizing

Supports LRA – can provide the required energy for HVAC systems starting during backup operation

Small, lightweight, and easy to install

Modular design, future ready with optional upgrades to: DC-coupled storage for full or partial home backup

Built-in consumption monitoring

Direct connection to the SolarEdge Home EV Charger

Multi-inverter, scalable storage solution, with enhanced battery power up to 10kW

Integrated arc fault protection and rapid shutdown for NEC 2014 – 2023, per article 690.11 and 690.12

Embedded revenue grade production data, ANSI C12.20 Class 0.5

NEMA 4X-rated, for indoor and outdoor installations

Embedded Power Control System (PCS) – install larger systems while avoiding main panel upgrade

spec sheet: SE-EH-9600H
