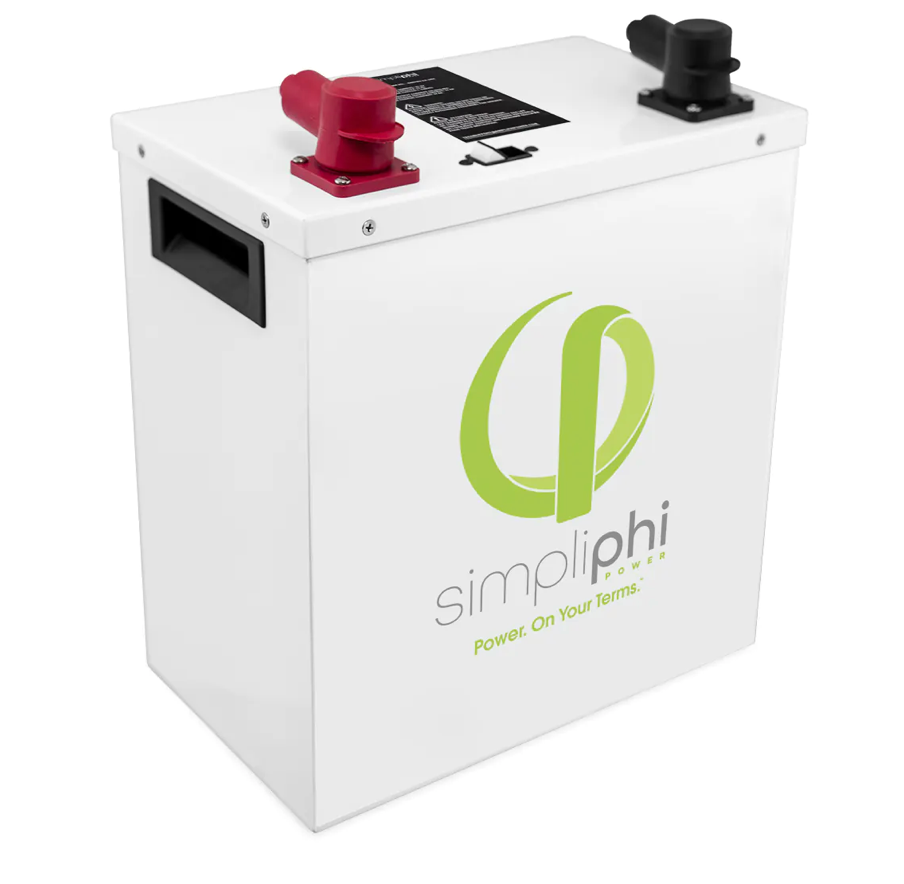

SIMPLIPHI PHI-3.8-48-60, 48V 75Ah Lithium

SIMPLIPHI - PHI-3.8-48-60, 48V 75Ah Lithium

  • $3,977.50
    Unit price per
Shipping calculated at checkout.

SIMPLIPHI - 3.8 kWh/48V Lithium Ion Battery

SKU: PHI-3.8-48-60
The PHI 3.8™ kWh 60 Amp deep-cycle Lithium Ferro Phosphate (LFP) battery is optimized with proprietary cell architecture, power electronics, BMS and assembly methods. It is modular, light- weight and scalable for installations that range from kWh to MWh. Provides power security and seamless integration of renewable and traditional sources of energy in conjunction with or independent of the grid: net zero, peak shaving, emergency back-up, portable and mobile.

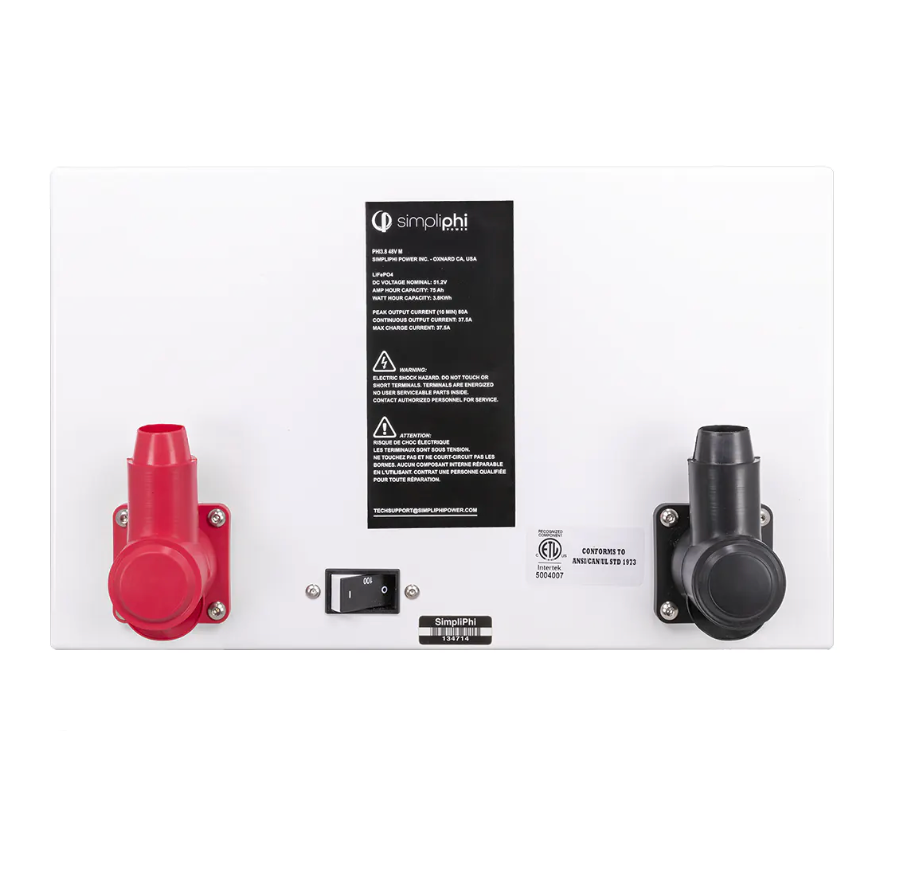

  • Built-in accessible 80 Amp DC breaker On/Off switch - increases safety and simplifies installations
  • 24V and 48V LFP batteries with proprietary architecture and Battery Management System (BMS)—do not require ventilation, cooling or thermal regulation
  • Compatible with all industry standard inverter/charge controllers
  • Drop in replacement for lead acid
  • LFP is the safest, most environmentally benign Lithium Ion chemistry available—no cobalt, risk ofthermal runaway or fi re
  • No AC or toxic liquid cooling—negligible parasitic drain —long cycle life
  • Non-toxic and non-hazardous recyclable materials
  • SKU PHI-3.8-48-60
    Brands Simpliphi
    Data Sheet PHI 3.8kWh Spec Sheet
    Manual PHI 3.8kWh Manual
    Volts 51.2 V
    Capacity (20hr) See Specsheet
    Capcity (100hr) See Specsheet
    Dimensions 13.5 x 14 x 8 in. (15.5” H w/terminals) / 0.88 ft3 (34.3 x 35.6 x 20.3 cm / 0.025 m3)
    Product Weight 78.2 lbs
    Warranty 10 Years
