MidNite Solar MNEPV20  20A, 150 VDC, DIN rail mount, 13mm wide

MidNite - MNEPV20

  • $27.99
    Unit price per
Shipping calculated at checkout.

MidNite - MNEPV20


20A, 150 VDC, DIN rail mount, 13mm wide

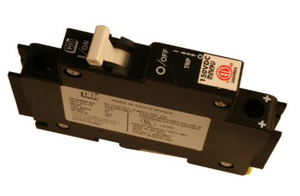

Midnite Solar 20A 150 VDC DIN rail mount breaker. Commonly used in E-Panels and BabyBox enclosures, fit any standard DIN rail. These breakers have been evaluated by ETL to 150 VDC and are listed for US and Canada.

MidNite's breakers are rated to break the full rated load at the rated voltage repeatedly, with no damage. Always use a properly sized breaker for disconnecting.


  • Compact 13mm/module width
  • Hydraulic-magnetic technology
  • Precision tripping
  • Suitable for isolation
  • Temperature independent trip point
  • Mid trip handle

spec sheet: Data Sheet (EN)

Type DIN
Maximum Current [A] 20
Maximum Voltage [VCC] 150
Position 1
Ambient temperature [C] -40 to +65
Certifications ETL
Width [cm] 1.3
Height [cm] 6.6
Depth [cm] 9.3
Weight [kg] .25
Warranty [years] 5 years
