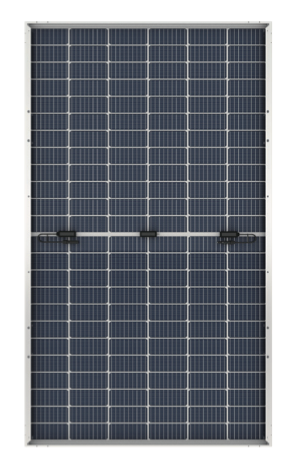

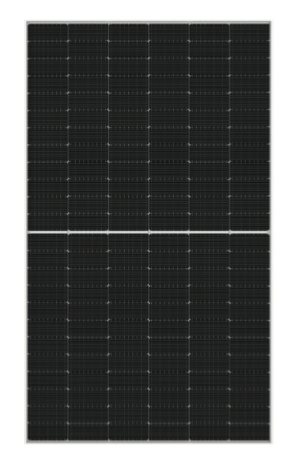

Longi - LR5-72HBD-535M, 535W bifacial solar panel
Longi - LR5-72HBD-535M, 535W bifacial solar panel
Available to pickup, or ship from Montreal QC, warehouse only
*Minimum ship quantity 2x*
SKU: LR5-72HBD-535M
| Type | Bifacial 72 cells |
| Nominal Power [W] | 535 |
| Nominal Voltage [V] | 24 |
| Short Circuit Current (Isc) [A] | 13.78 |
| Open Circuit Voltage (Voc) | 49.35 |
| Optimal Current (Imp) [A] | 12.90 |
| Optimal Voltage (Vmp) | 41.5 |
| Temperature Coefficient Pmax | -0.34 |
| Temperature Coefficient Voc | -0.265 |
| Maximum Fuse Rating | 30 |
| Maximum Voltage [VCC] | 1500 |
| Height [cm] | 225.6 |
| Width [cm] | 113.3 |
| Thickness [cm] | 3.5 |
| Weight [kg] | 32.3 |
| Certifications | IEC 61215, IEC 61730, UL61730 |
spec sheet:
| Datasheet (EN) |
| Packaging (EN) |
| CSA Certificate (EN) |
| Manual (EN) |
