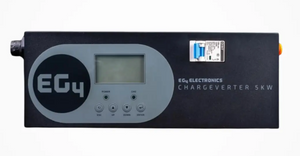

EG4 - Chargeverter GC, 48V 100A Battery Charger

SKU: EG4CV48V100AV3

The EG4 Chargeverter GC makes charging batteries easier, particularly in unpredictable weather conditions and with lower-budget generators. Its features include the ability to charge batteries during low light using a generator. It also offers protection against poor quality sine waves and control of generator start/stop functions. Additionally, it allows for customizable charge current and voltage. The system integrates seamlessly with EG4 batteries for efficient power management. Moreover, it boasts direct compatibility with generators and offers convenient installation with included mounting bracket and cables.

Bad Weather Resilience:

• Charge batteries during low light conditions using a generator (up to 100A)
• Ideal for unpredictable weather patterns

Protection from "Dirty Power":

• Guards against unreliable sine waves from lower-budget generators
• Protects inverters from power quality issues

Charger Output Specifications:

• Optimized for 240 VAC power supply
• Nominal Battery Voltage: 48VDC
• Adjustable Charge Current: 0-100A at 240VAC
• Adjustable Charge Voltage: 43-57VDC (Default at 54VDC)
• Maximum Output Watts: 5120W at 240 VAC

AC Input Specifications:

• Plug directly into a generator without concern for power issues
• AC Input Voltage Range: 90-264VAC
• Maximum Input Amps: 26A at 240VAC, 28A at 120VAC

Dry Contacts:

• Control of generator start/stop function based on Voltage or state of charge (SOC)

Using EG4 Batteries?

• Closed loop communication with EG4 batteries for charging based on battery state of charge (SOC), when batteries are not in communication with the inverter
