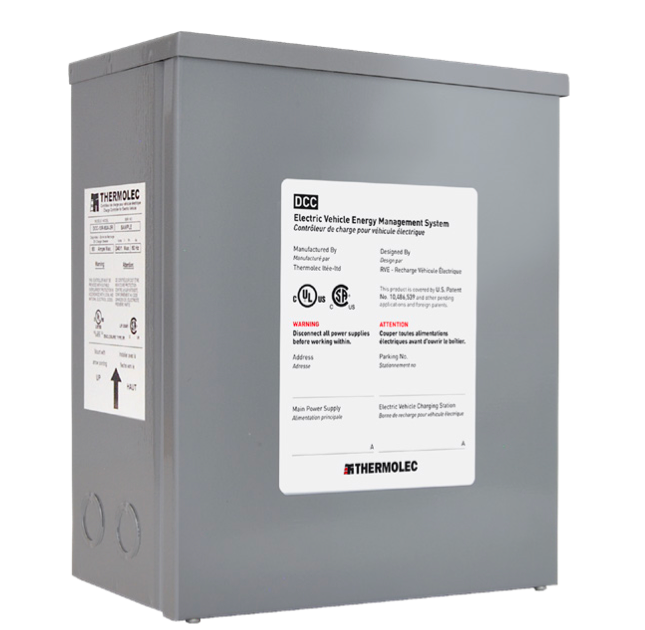

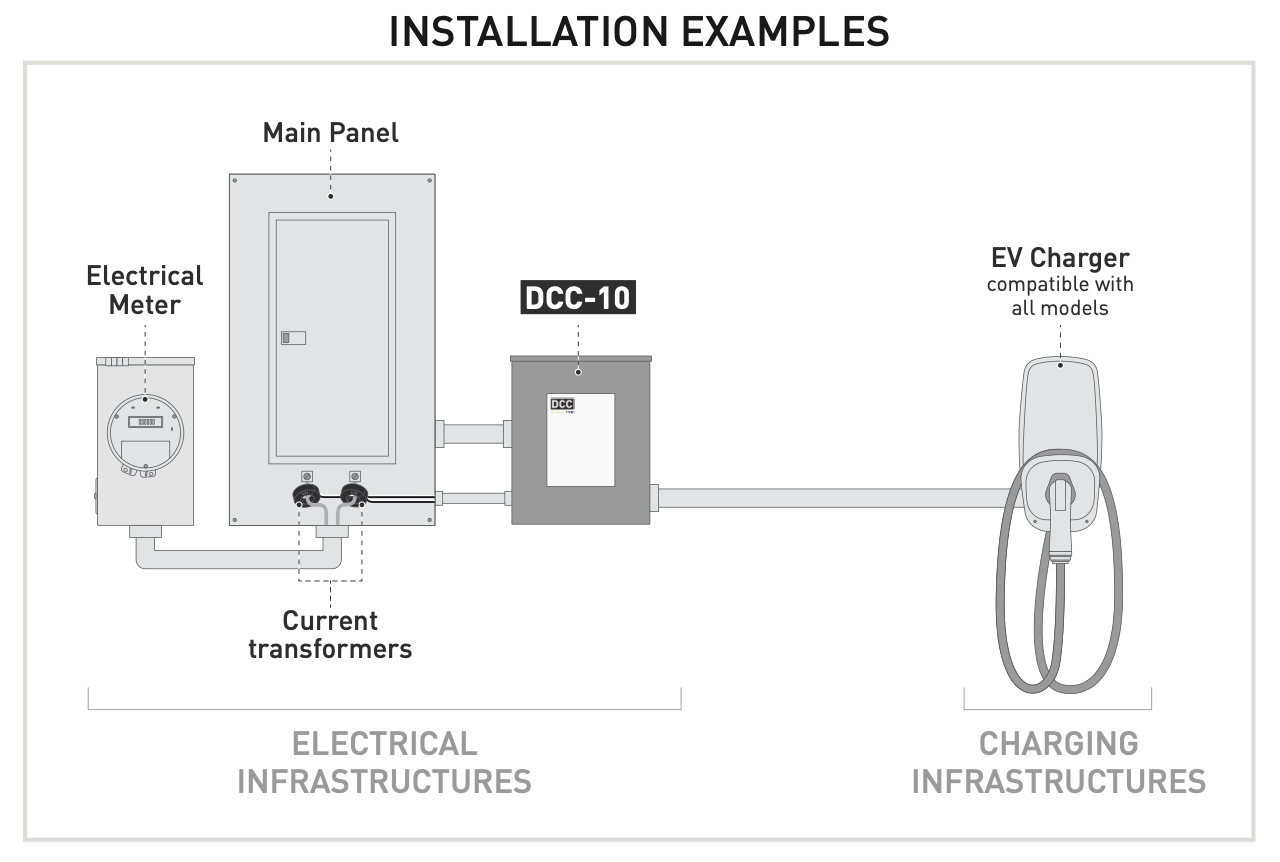

DCC-10 is an energy management system specif- ically designed to allow the connection of an EV charger to a panel that is at full capacity and would otherwise need a service upgrade.

OPERATION

– Real-time reading of the total power consumption of the home’s electrical panel;

• –  Detects when total power consumption exceeds 80% of main circuit breaker capacity and tempo- rarily de-energizes the EV charger;

• –  Automatically re-energize the EV charger when the total power consumption of the electrical panel is less than 80% of its capacity for more than 15 minutes.

• –  Requires one double pole breaker slot available in a panel.

  FEATURES

  – Does not affect load calculation of a panel. – Automatic billing of electricity by the utility.

  • –  Can be wall or ceiling mounted.

  • –  NEMA 3R enclosure available for outdoor

    installation.
    - Possibility to receive and transmit load shedding

    instructions from an external energy manage- ment system via a dry contact input and output.

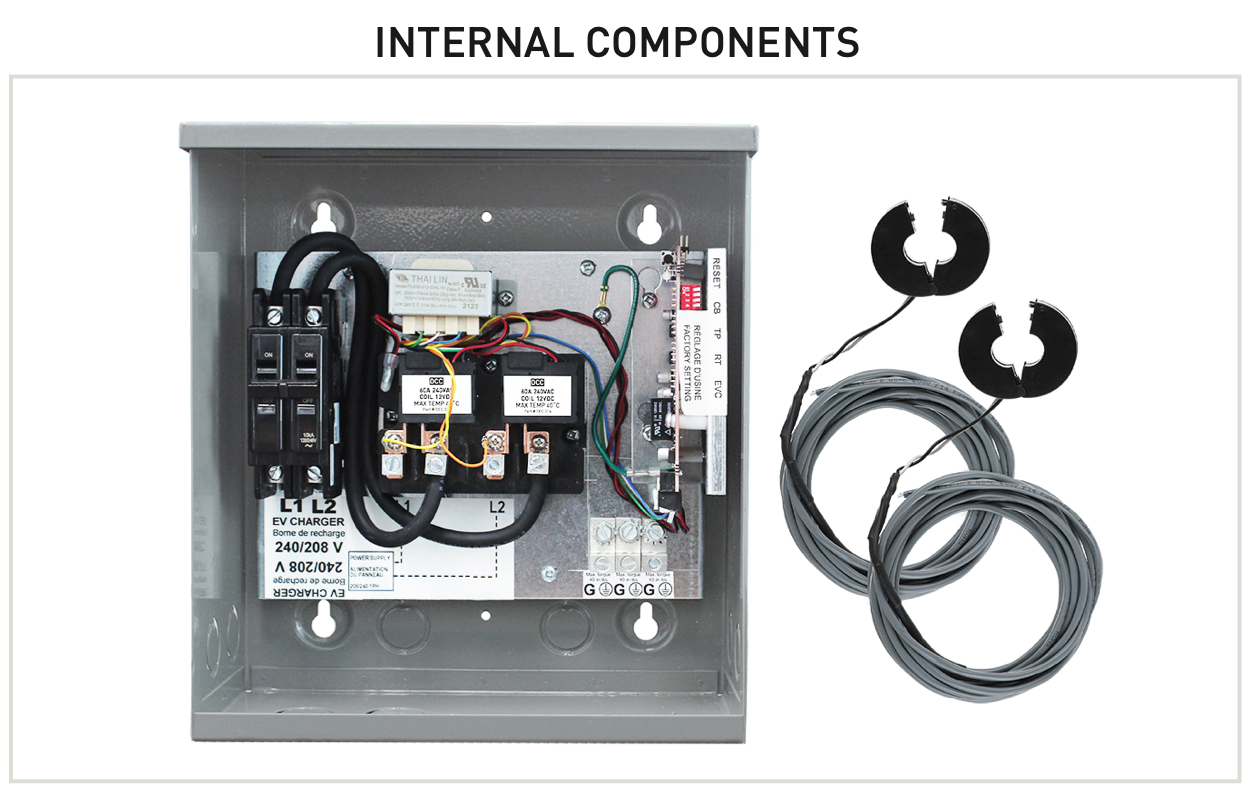

    INCLUDED

    – Electric Vehicle Energy Management System – EV Charger Breaker (Max 60A)
    – 2 Split Core Current Transformers (CT)

spec sheet: DCC-10-40A
