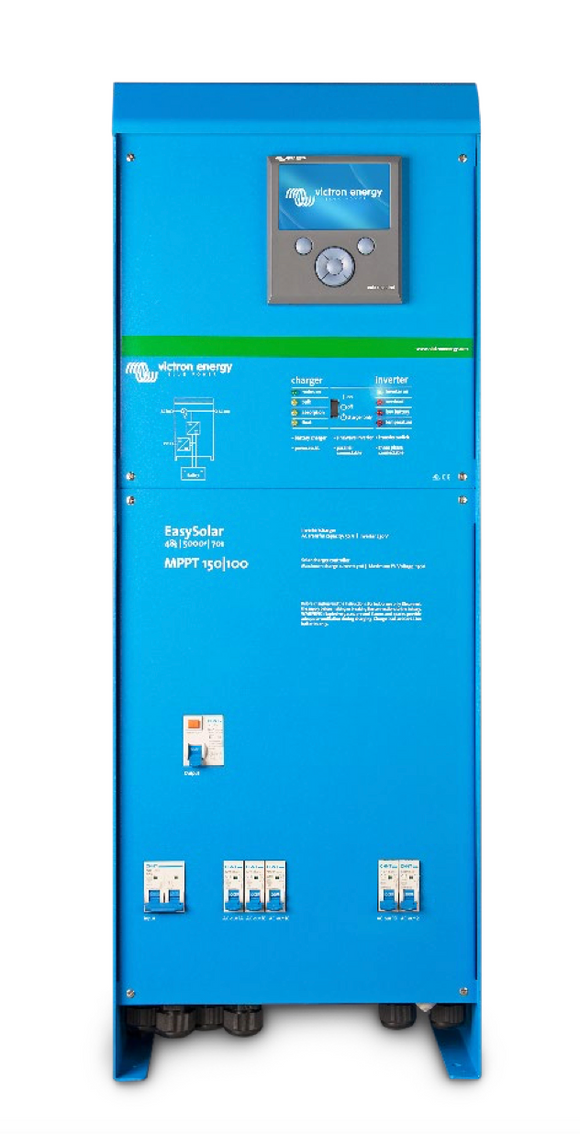

Victron Energy - EasySolar 24/3000/70-50 MPPT 150/70 Color Control
Victron Energy - EasySolar 24/3000/70-50 MPPT 150/70 Color Control
SKU: PMP242307010
FREE Shipping on Victron Orders Over $150!
The all-in-one solar power solution
The EasySolar combines a MPPT solar charge controller, an inverter/charger and AC distribution in one enclosure.
The product is easy to install, with a minimum of wiring.
Color Control panel
Two outstanding functions:
- Prioritizes battery charging by the MPPT charge controller
- Connects to the internet, enabling remote monitoring (VRM website) and remote control.
AC distribution
The AC distribution consists of a RCD (30mA / 63A) and four AC outputs protected by two 10A and two 16A circuit breakers.
An additional 16A output is controlled by the AC input: it will switch on only when AC is available.
PowerAssist
Unique PowerAssist technology protects the utility or generator supply from being overloaded by adding extra inverter power when needed.
Unique solar application software
Several software programs (Assistants) are available to configure the system for various grid interactive or stand-alone applications. Please seehttp://www.victronenergy.nl/support-and-downloads/software/
| Type | Off-Grid 230V 50Hz |
| Nominal Power [W] | 3000 |
| Battery voltage [V] | 24 |
| Output voltage [V] | 230 |
| Charger capacity [A] | 70 |
| Efficiency [%] | 94 |
| Maximum Units in Parallel | 1 |
| Terminal Block Size [AWG] | LUG |
| Terminal Block Temp Rating [C] | 90 |
| Ambient temperature [C] | -40 to +65 |
| Certifications | EN 55014-1, EN 55014-2, EN 61000-3-3 |
| Dimensions [cm] | 81.0 x 25.8 x 21.8 |
| Weight [kg] | 28 |
| Warranty [years] | 5 |
spec sheets:
| Data Sheet (FR) |
| Manual |
| Data Sheet (EN) |
