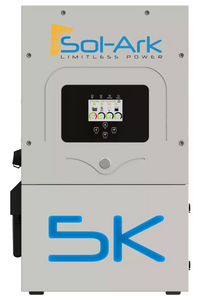

Sol-Ark SA-5K Hybrid Solar Battery System

SKU: SA-5K

The Sol-Ark 5K Pre-Wired Hybrid Inverter System is an all-in-one system that includes an inverter, charger controller, and display with remote monitoring. The Sol-Ark is simple to install to a Grid-tied, Off-Grid, or Battery Backup solar system, while being able to manage power to and from Solar, Battery, Grid, Loads, and Generator.

SA-5K Features:

• Simple to install with touchscreen interface
• Grid Tied Mode: Sell your power to reduce electric bill
• Meter Zero Mode: Zero your electric bill without a smart meter
• Time of Use: Use solar and batteries to minimize grid power usage
• Programmable Smart Load Mode
• DC and AC Coupling
• Works with a wide range of battery chemistries - Lead acid to Lithium

SA-5K Specifications:

• AC Voltage: 120/240V split phase
• AC Frequency: 60/50 Hz
• Max PV power delivered to Battery & AC outputs: 6500 Watts
• Max AC Coupled input(Micro/String Inverters): 9,600 Watt/9,600 Watt
• MPPT Voltage Range: 150-425V
• Max DC Current: 10 Amp (per mppt)
• Inverter Efficiency: 96.0%
• Listings & Certifications: UL1741-2010/2018, IEEE1547a-2003/2014, FCC 15 class B
• Weight: 78. lbs
• Dimensions (H x W x D): 30.0" x 18.30" x 10.00"

5 Year Standard Warranty
