Sol-Ark - 5K-1P-N

  • $4,791.99
    Prix unitaire par
  • Épargnez $1,886.01
Frais de port calculés à l'étape de paiement.


Sol-Ark - 5K-1P-N

 SKU: 5K-1P-N

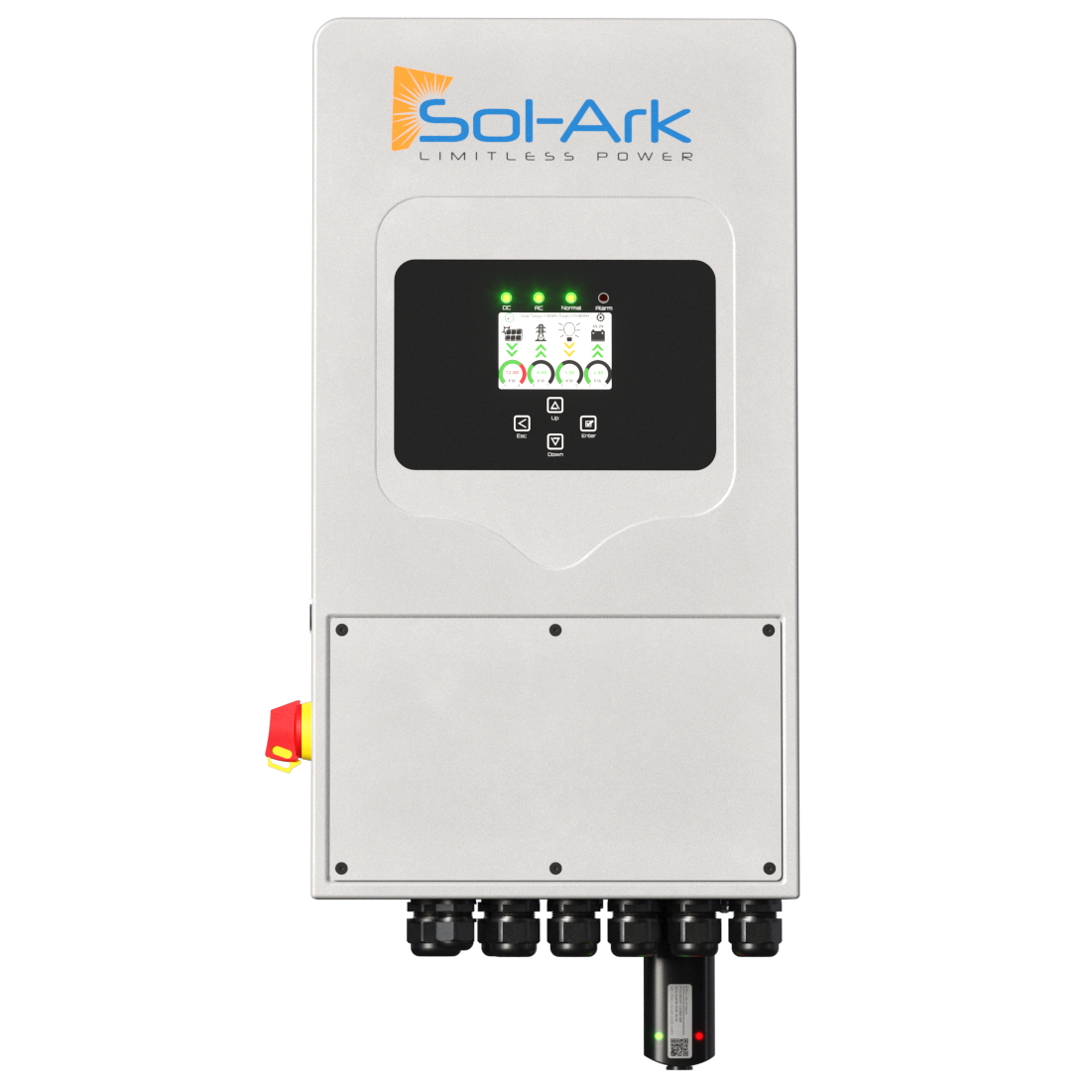

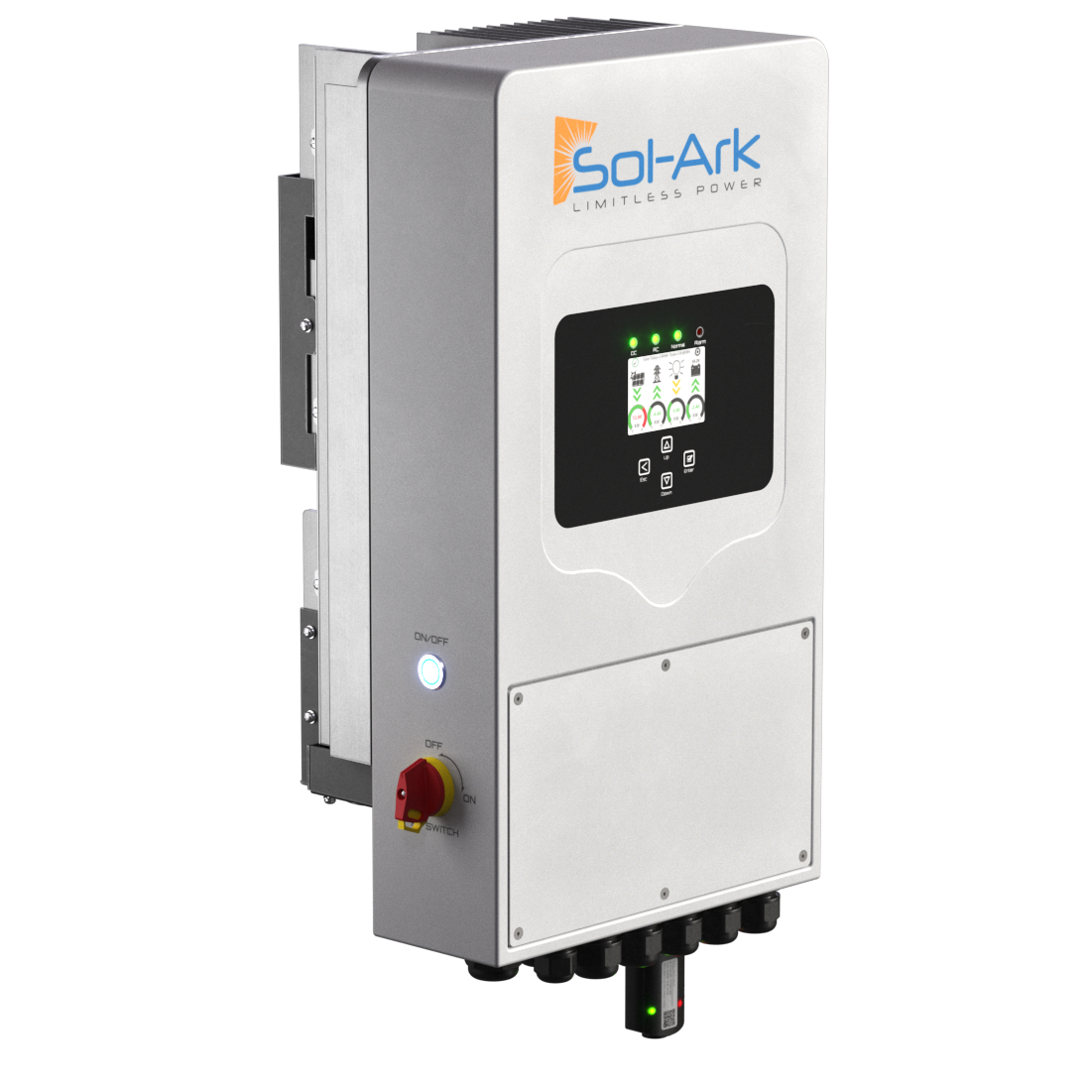

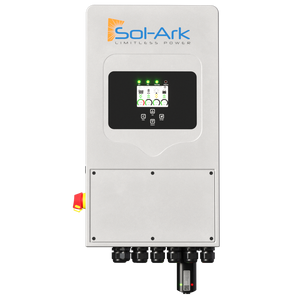

 Sol-Ark 5K-1P-N Pre-Wired Hybrid Inverter System is an all-in-one system that includes an inverter, charger controller, and a display with remote monitoring.

 The Sol-Ark is simple to install to a Grid-tied, Off-Grid, or battery backup solar system, while being able to manage power to and from Solar, Battery, Grid, Loads, and Generator.

SA-5K-1P-N Specifications:

AC Voltage: 120V single phase

AC frequency: 60/50 Hz

Max allowed PV power: 10,400 Watts

MPPT Voltage range: 125-425V

PV input Voltage: 370V (100~500V)

PV input current: 20A + 20A

Rated AC output: 4,800 Watt

Inverter efficiency: 97.6%

Weight: 51 lbs

Dimensions (H x W x D): 22.8″ x 13.0″ x 9.1″

5 Year Standard Warranty

UL version (5K-120V)

Features Of The 5K-1P-N:

 Simple to install with touchscreen interface

Grid Tied Mode: Sell your power to reduce electric bill

Meter Zero Mode: Zero your electric bill without a smart meter

Time of Use: Use solar and batteries to minimize grid power usage

Programmable Smart Load Mode

DC and AC Coupling

Works with a wide range of battery chemistries – Lead acid to Lithium

Documents:

5K-1P-N spec sheet
