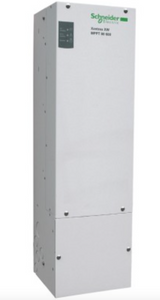

Schneider Electric - MPPT 80-600, High Voltage Charge Controller, 600V 80A

SKU: MPPT 80-600

The XW MPPT 80 600 is an innovative solar charge controller that offers an industry-first set of features: high PV input voltage (up to 600 VDC), Maximum Power Point Tracking (MPPT), and 80A charge current. 600 VDC PV input voltage delivers lower installation costs through fewer PV strings, longer home runs, smaller wiring and conduit, and virtual elimination of PV combiner boxes and circuit breakers. MPPT technology helps harvest the most energy available from the PV array, regardless of environmental conditions. 80A battery charge current allows for connection of arrays rated at up to 4800W (48V battery bank).

spec sheet:

Manual (EN)
Manual (FR)
Data sheet (EN)
Type MPPT
Battery voltage [V] 24, 48
Maximum Current 24V Battery [A] 80
Maximum Current 48V Battery [A] 80
Max. PV Array @ 24V [W] 2560
Max. PV Array @ 48V [W] 4800
Max PV Open Circuit Voltage 24V [V] 600
Max PV Open Circuit Voltage 48V [V] 600
Minimum input voltage [V] 195
Number of MPPT 1
Number of Strings/MPPT 1
Efficiency [%] 96
Supported battery types Lead acid, AGM, GEL, Lithium
Terminal Block Size [AWG] 2
Terminal Block Temp Rating [C] 90
Ambient temperature [C] -20 to +65
Grounding Negative, Positive
Protection IP20
Certifications CSA C22.2 No 107.1, UL 1741, CE
Width [cm] 22
Height [cm] 76
Depth [cm] 22
Weight [kg] 13.5
Warranty [years] 5 years
