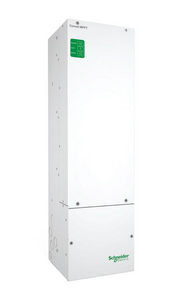

Schneider Electric - Conext MPPT 100-600, Charge Controller, 600V 100A
Schneider Electric - Conext MPPT 100-600, Charge Controller, 600V 100A
SKU: XW-MPPT100-600
The Conext MPPT 100 A 600 Vdc solar charge controller offers optimum system performance for DC coupled solar and storage installations, with easy, flexible installation of large PV arrays.
| Type | MPPT |
| Battery voltage [V] | 24, 48 |
| Maximum Current 24V Battery [A] | 100 |
| Maximum Current 48V Battery [A] | 100 |
| Max. PV Array @ 24V [W] | |
| Max. PV Array @ 48V [W] | 6000 |
| Max PV Open Circuit Voltage 24V [V] | 600 |
| Max PV Open Circuit Voltage 48V [V] | 600 |
| Minimum input voltage [V] | 195 |
| Number of MPPT | 1 |
| Number of Strings/MPPT | 1 |
| Efficiency [%] | 95 |
| Supported battery types | Lead acid, AGM, GEL, Lithium |
| Terminal Block Size [AWG] | 2 |
| Terminal Block Temp Rating [C] | 90 |
| Ambient temperature [C] | -20 to +65 |
| Grounding | Negative, Positive |
| Protection | IP20 |
| Certifications | CSA C22.2 No 107.1, UL 1741, CE |
| Width [cm] | 22 |
| Height [cm] | 76 |
| Depth [cm] | 22 |
| Weight [kg] | 13.5 |
| Warranty [years] | 5 years |
spec sheet:
| Data Sheet (EN) |
| Installation guide (EN) |
| Manual (EN) |
