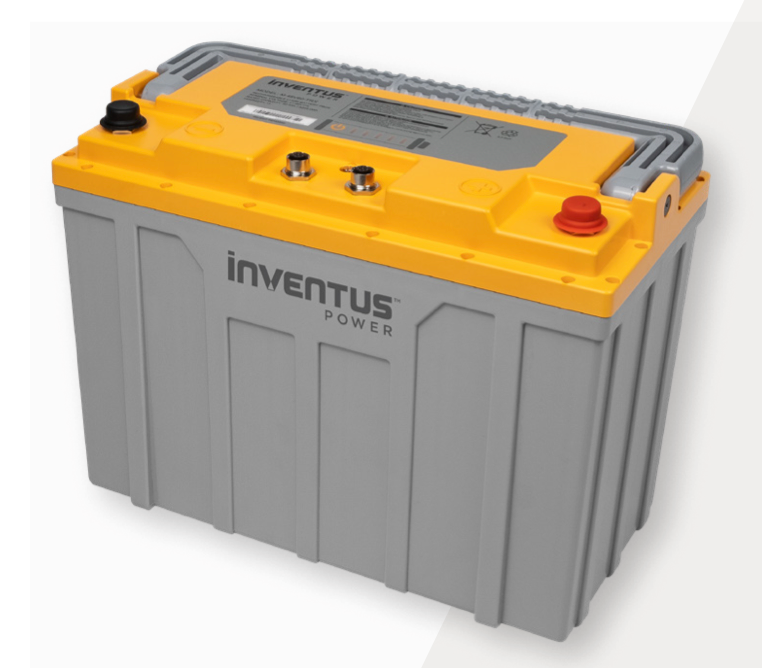

Inventus Power - M-48V60-TRX, 48V 60Ah Lithium
Inventus Power - M-48V60-TRX, 48V 60Ah Lithium
SKU: M-48V60-TRX
Key Benefits
-
Fast charging within 3hrs to increase productivity
-
Long shelf life performance with shutdown mode
-
Cold temperature functionality
(-30°C) with optional integrated heater -
System fault mitigation protection
-
CANopen / J1939 communication
-
Compatible with many off-the-shelf industrial chargers
|
Electrical Specifications |
|
|
Pack Voltage (Nom/Max) |
50.8V / 58V |
|
Pack Energy |
3.1kWh (60Ah) |
|
Specific Energy |
165Wh/kg |
|
Continuous Power |
3.1kW (60A) |
|
Recommended Charge CCCV |
20A / 58V |
|
Peak Power (<30secs) |
7.11kW (140A) |
|
Cycle Life (@ 25°C) |
2,000 @ 80% DoD |
|
Scalability |
Up to 10 packs in parallel |
|
Mechanical Specifications |
|
|
BCI Size |
Group 5D |
|
Model M-48V60-TRX |
|
|
Cell Chemistry |
Nickel Cobalt Manganese |
|
Terminal Type (ISO) |
M8 (Neg), M10 (Pos) |
|

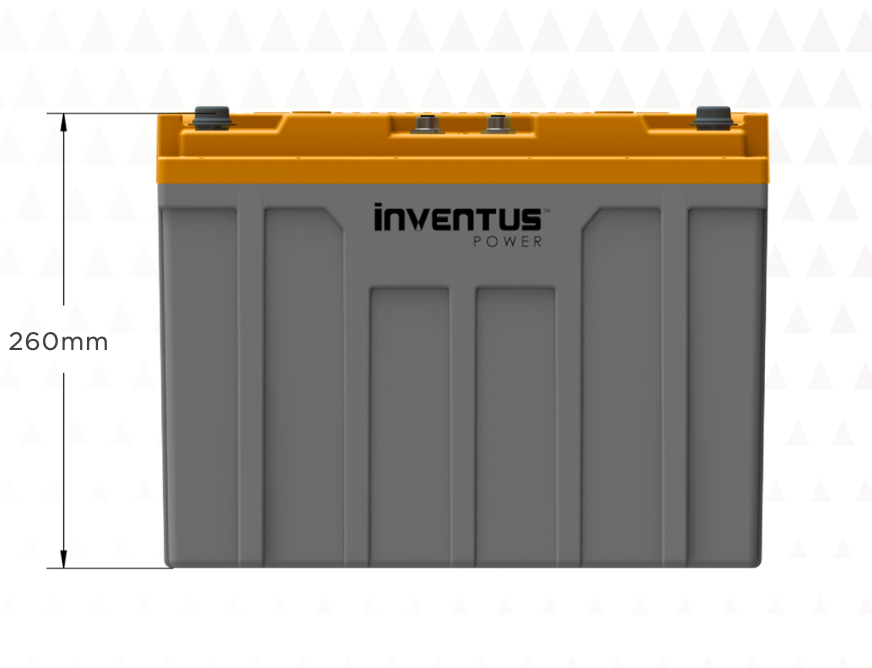

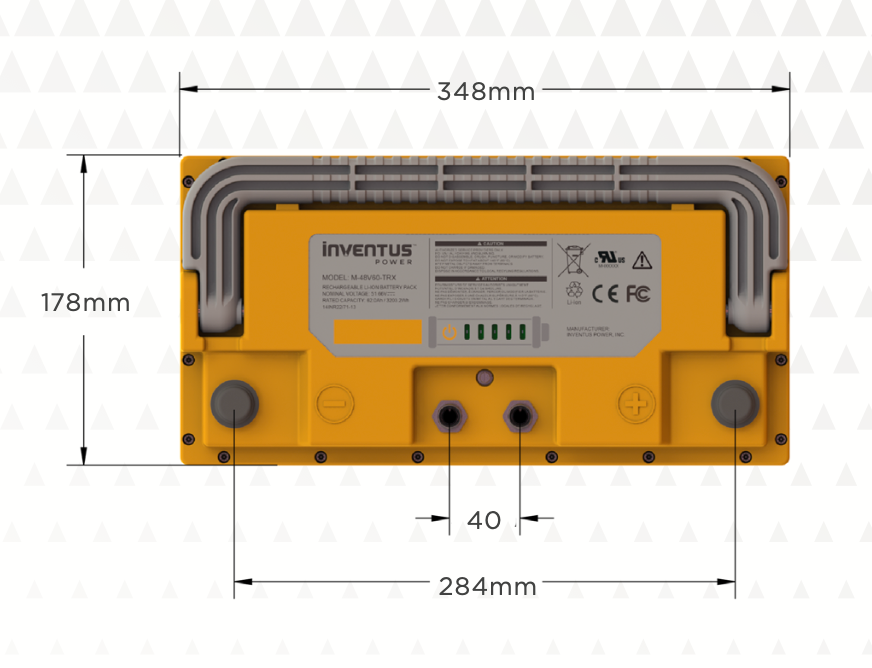

Dimensions (LxWxH) |
348mm x 178mm x 260mm (13.7” x 7.00” x 10.24”) |
|
Weight |
18.8kg (41.4lbs) |
|
Installation Orientation |
Horizontal / Vertical |
|
Ingress Protection Rating |
IP65 |
|
Case Flammability Rating |
Flame Retardant UL94 V-0 |
|
Operational Specifications |
|
|
Charge Temp |
0°C to 45°C |
|
Discharge Temp |
-20°C to 55°C |
|
Storage Temp |
-20°C to 55°C |
|
Humidity (Operating) |
5% to 95% |
|
Humidity (Storage) |
<70% |
spec sheet: M-48V60-TRX
