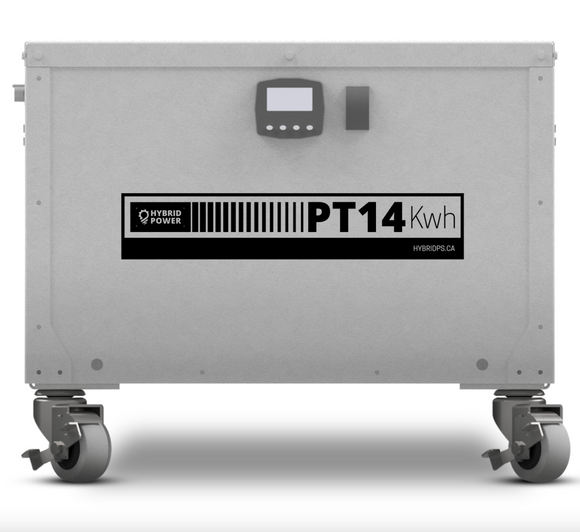

Hybrid Power - PT Battery 14, 14 kWh
Hybrid Power - PT Battery 14, 14 kWh
SHIPPING NOTICE: Please note that this item is made to order and will ship out in 8 - 10 weeks.
The PT14 battery combines all the great features found in our PT series of batteries with a larger energy capacity. A high discharge capacity and built-in heating system make these batteries ideal for larger residential and commercial applications. Up to 24 of these modules can be paralleled to create a large, plug-and-play energy storage system. With intelligent battery integration, the balancing and integration of each parallel pack is done automatically leaving you with less to worry about. The PT14 features a UL9540A PASS battery allowing you to install these in almost any situation.
-
CHEMISTRY: LiFePO4
-
MIN VOLTAGE: 44V
-
NOMINAL VOLTAGE: 51.2VDC
-
MAX VOLTAGE: 58.4VDC
-
ENERGY CAPACITY: 14kWh
-
OPERATIONAL TEMPERATURE: -30°C to 45°C [-22°F to 113°F]
-
BATTERY HEATING OPERATIONAL TEMPERATURE: -30°C to 10°C [-22°F to 50°F]
-
MAXIMUM CONTINUOUS DISCHARGE AMPERAGE: 280A
-
MAXIMUM CONTINUOUS CHARGE CURRENT: 280A (140A recommended)
-
WEIGHT: 90.7 Kg [200 lbs]
-
DIMENSIONS: W39cm x H36cm x L61cm [W15.5 x H13.5" x L24"]
-
COMMUNICATION: CANBUS
-
ENCLOSURE MATERIAL: Aluminum
-
MAXIMUM BATTERIES IN PARALLEL: 24
Manual: PRD0033-14
