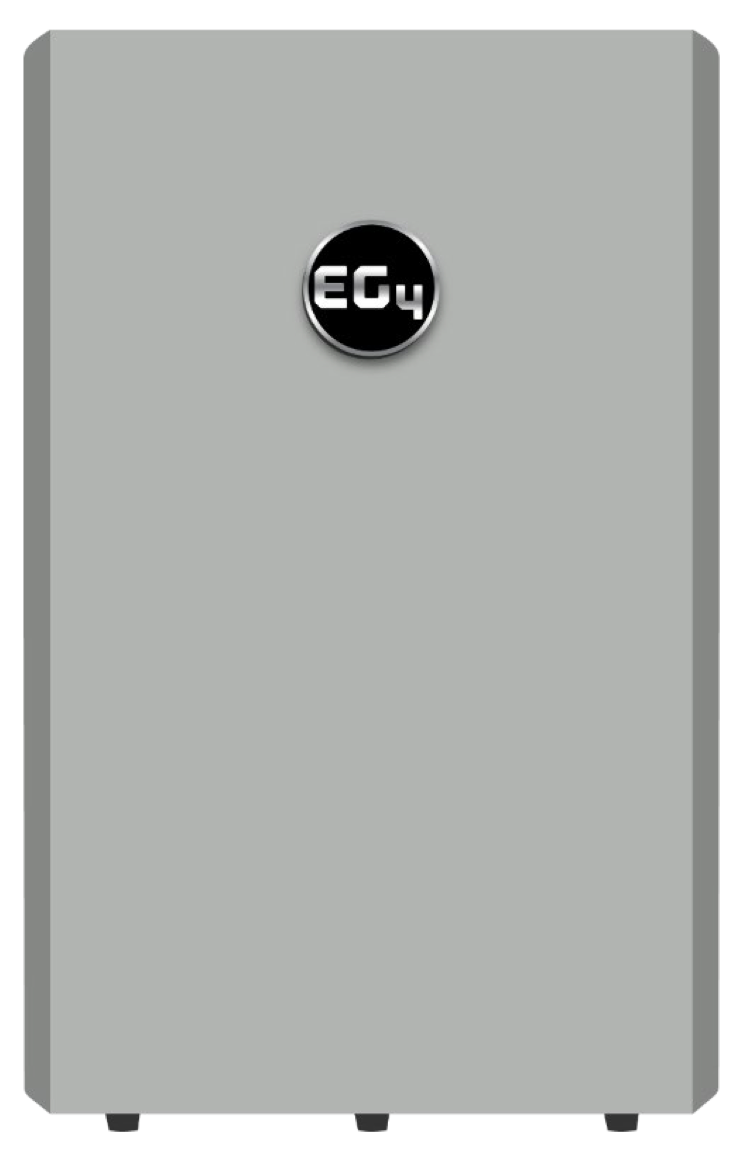

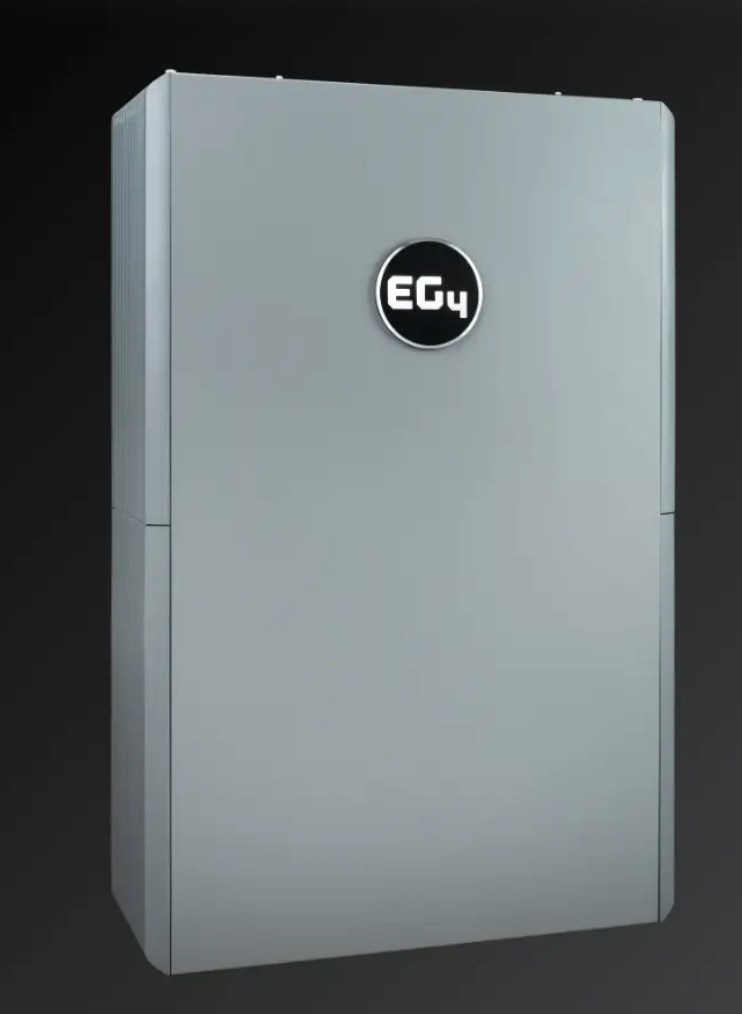

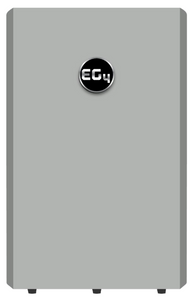

EG4 - 280Ah Wallmount All Weather Lithium Battery

  • $5,665.00
    Prix unitaire par
Frais de port calculés à l'étape de paiement.


EG4 - 280Ah Wallmount All Weather Lithium Battery

SKU: EG4LL48V100AODWMB

UL 9540A | UL 1973 | UL 9540 WITH 18KPV | IP65

EG4’s WallMount All Weather battery features 14.3 kWh storage capacity and delivers 200A max continuous discharge. The battery’s integrated self-heating feature makes it optimal for outdoor applications and it’s backed 10-year warranty. This battery is certified electromagnetic pulse (EMP)-hardened, so it is capable of withstanding disruptions caused by natural and manmade EMPs.

The EG4 WallMount Battery, equipped with a 200A BMS, supports over 8000 cycles at 80% depth of discharge (DOD), providing up to 82.6MWh of lifetime production. This battery is designed to pair with EG4 inverters like the 18kPV, 12kPV, and 6000XP.

Weather-tight quick connects ensure secure and reliable connections, while 600A internal busbars and multiple terminals eliminate the need for external busbars. E-Stop offers a single-button emergency shutdown for all batteries and inverters equipped with RSD capabilities. Additionally, dual fire arrestors provide thermal runaway protection. The on-board LCD touchscreen simplifies BMS monitoring and supports closed-loop communication with EG4 and other select inverters.

Reliable Power

  • 10kW delivery, with peak power 10.5kW (10 sec.) and 15.4kW (3 sec.)
  • Constant discharge current – 200A
  • Over 8000 cycles at 80% DOD with an 82.6Mwh lifetime production
  • Smart and intelligent BMS for reliability, efficiency and safety
  • Integrated self-heating features when needed in low temperature

All-Weather Design:

  • Built to withstand various weather conditions, making it perfect for outdoor applications



PowerPro ESS:

  • Optional conduit box add-on makes installation with an EG4 18kPV simple
  • No thermal monitoring or ventilation needed



Certifications:

  • UL 9540A | UL 1973
  • UL 9540 with 18kPV
  • Outdoor Rating IP65

spec sheet:
